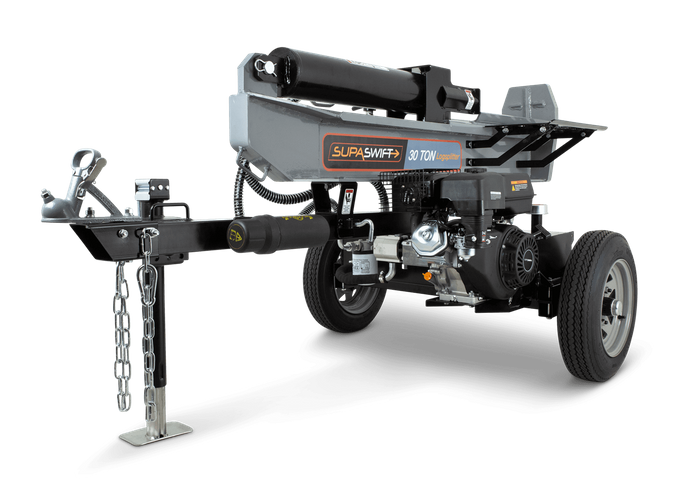

SUPASWIFT 530ALS 30 TON LOG SPLITTER
Stock Code:
SSU530ALS
$3,399.00
Description
Description
Quality Engine - SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.Horizontal or vertical operation.25 Tons of splitting force.Manually activated auto return valve.Two stage pump 13 GPM (49.21 litres per minute).Valve - Ergonomically positioned for operator comfort.Wedge: 8.5 " (215.9 mm) High angled heat treated steel.Wheels / Tyres*: 4.80" x 12" D.O.T certified.Beam: 8.5" (215.9 mm) Foot plate.
Specifications
Specifications:
Hydraulic Ram Cylinder: (mm)
Outside: 139.7 mm x 609.6 mm stroke / Inside: 127mm x 622.3 mm stroke
Hydraulic Tank Capacity: (L)
50 litres [Hydraulic system including hydraulic tank]
Maximum Log Length: (mm)
25" / 635 mm
Pump: (L)
Two stage pump 15 GPM (56.78 litres per minute)
Tow Hitch: (mm)
*2" (50 mm) ball hitch with safety chains - Aust style trailer bail hitch
Wedge: (mm)
9" (228.6 mm) High angled heat treated steel
Operating Position
Horizontal or vertical operation
Capacity
30 Tons of splitting force
Valve
Manually activated auto return valve with adjustable detent
Cycle Time
12.9 seconds (down and back)
Wheels / Tyres
*D.O.T approved 12" x 4.80" multi lug trailer wheel
Beam (mm)
9" Foot plate / 228.6 mm Foot plate
Ram Size
2" (50.8 mm) Dia
Warranty
Domestic Warranty
3 Year Domestic Warranty
Commercial Warranty
3 Month Commercial Warranty
Hire/Rental Warranty
3 Month Hire/Rental Warranty
Additional Info
Quality Engine - SupaSwift, 9.5 hp 270cc, horizontal shaft, single cylinder OHV engine.Horizontal or vertical operation.30 Tons of splitting force.Manually activated auto return valve with adjustable detent.Cycle time, down and back 12.9 seconds.Two stage
